UNIQUE AND VERSATILE

Limitless configuration, modular LED lighting system.

Unique & Versatile LED Lighting Solution

One product for many application. We redesigned the way modular LED lighting systems should be. Our patented architectural and signage LED lighting solution is like no other system out there. With ToroMesh®, you're limited only by your imagination.

With ToroMesh®, cutting and assembling to create unique configurations for your lighting projects is easy and fast. Lattice systems for framed applications can be accomplished in minutes. Lighting up channel lettering has never been easier and faster. ToroMesh® has covered all the angles, literally!

Low voltage, low wattage, high lumens. Brighten up or color your projects with ToroMesh® LED lighting system.


Light-Weight


ToroMesh® is a unique lighting system for architechural and signage projects. Modules and strips are made of FR4 (glass-reinforced epoxy laminate material) and are extreamely light-weight. Accessories required to connect individual modules together were engineered to be light-weight and clip on securely.

Tension Strong


Our clip-on, clip-off connectors were engineered to withstand over 10lbs of tension to ensure a strong hold for long vertical or horizontal mesh or lattice applications. Module and strips can withstand over 75lbs of tension due to their material composition.

Truly Versatile

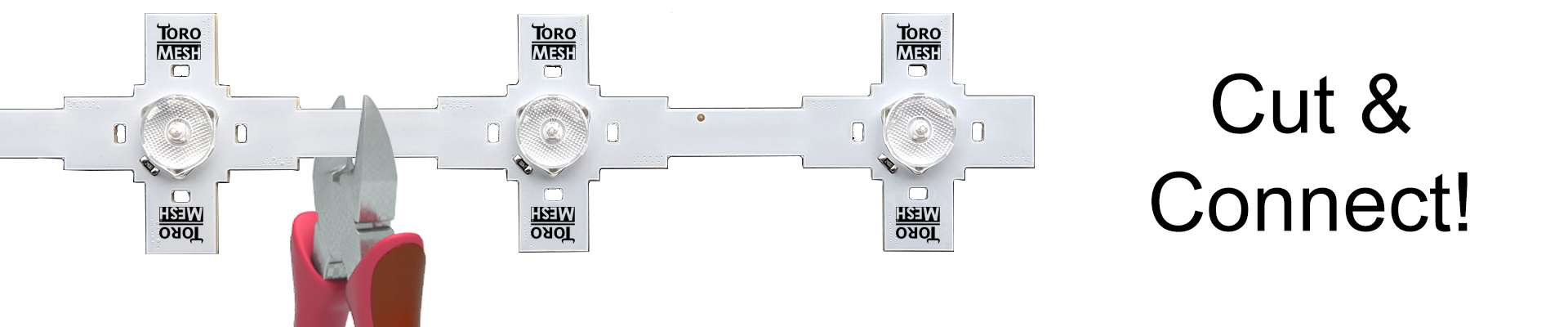

We encourage creativity with no boundaries. With a unique PCB design, ToroMesh® is made to be uses in any lighting application with ease of use. You can cut & connect the rigid strips or build an LED mesh with single modules. Never waste time or material with ToroMesh®.

Power Efficient


With a high lumen output per LED module, you'll need less to acheive more. ToroMesh® LEDs are efficient and super bright with 110 lumens per watt and powered by 24v DC.

ToroMesh LED Module

Online Simulator


We made it easy for our customers to calculate power segments and simulate framed projects, such as lightboxes, using ToroMesh® LED lighting system with our easy to use online simulator.

ToroMesh® is sold in modules or cuttable rigid strips and connectors come in many different lengths. Box sets are sold in lattice segments which can be easily installed into framed porjects. Simply selecting options from drop down menus, our customers can get the scope of their project instantly both for cost and power requirements.

Click here to view simulator.

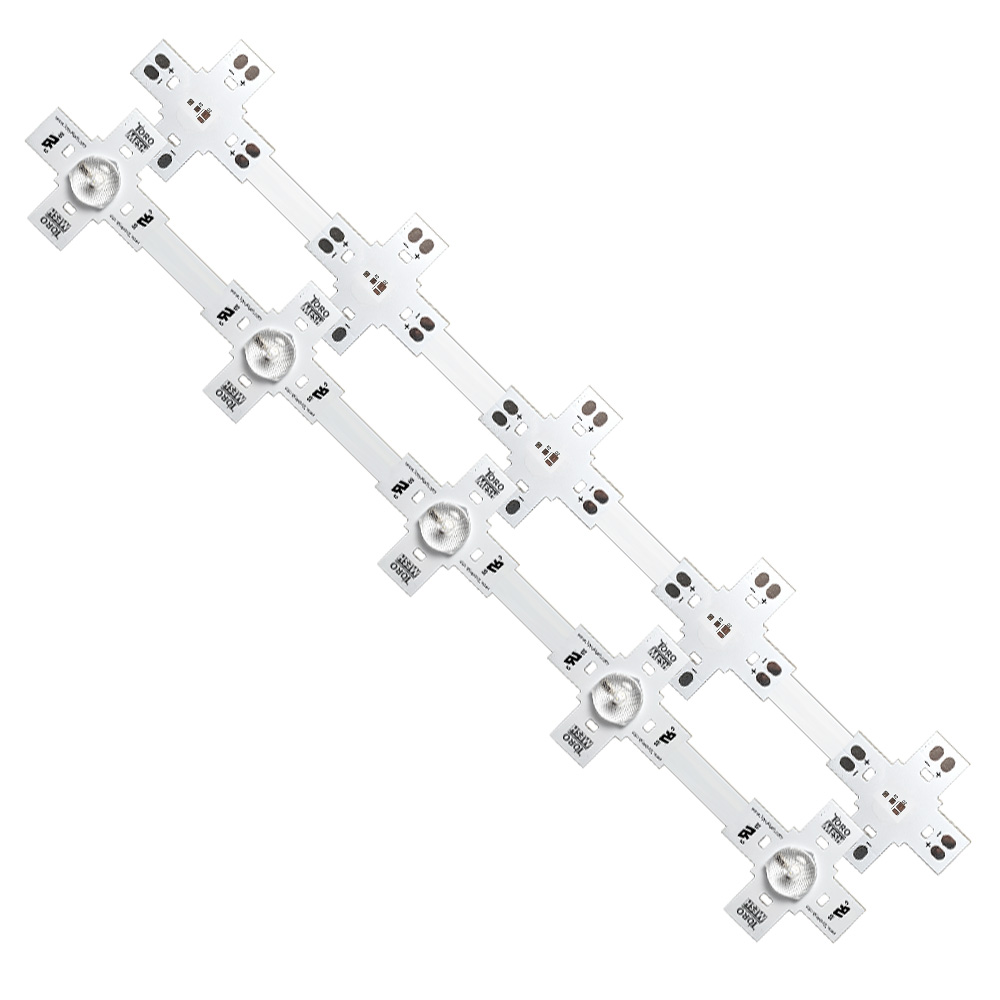

Single Sided Rigid LED Strip

TM-RS-SS-75L-5 (5 LEDs per strip)
TM-RS-SS-75L-9 (9 LEDs per strip)

Rigid LED strip with optical lens 170°, 75lm per LED.

Available with 5 or 9 LEDs per strip, cuttable into single modules.
ToroMesh TM-RS-SS-75L LED Rigid Strip

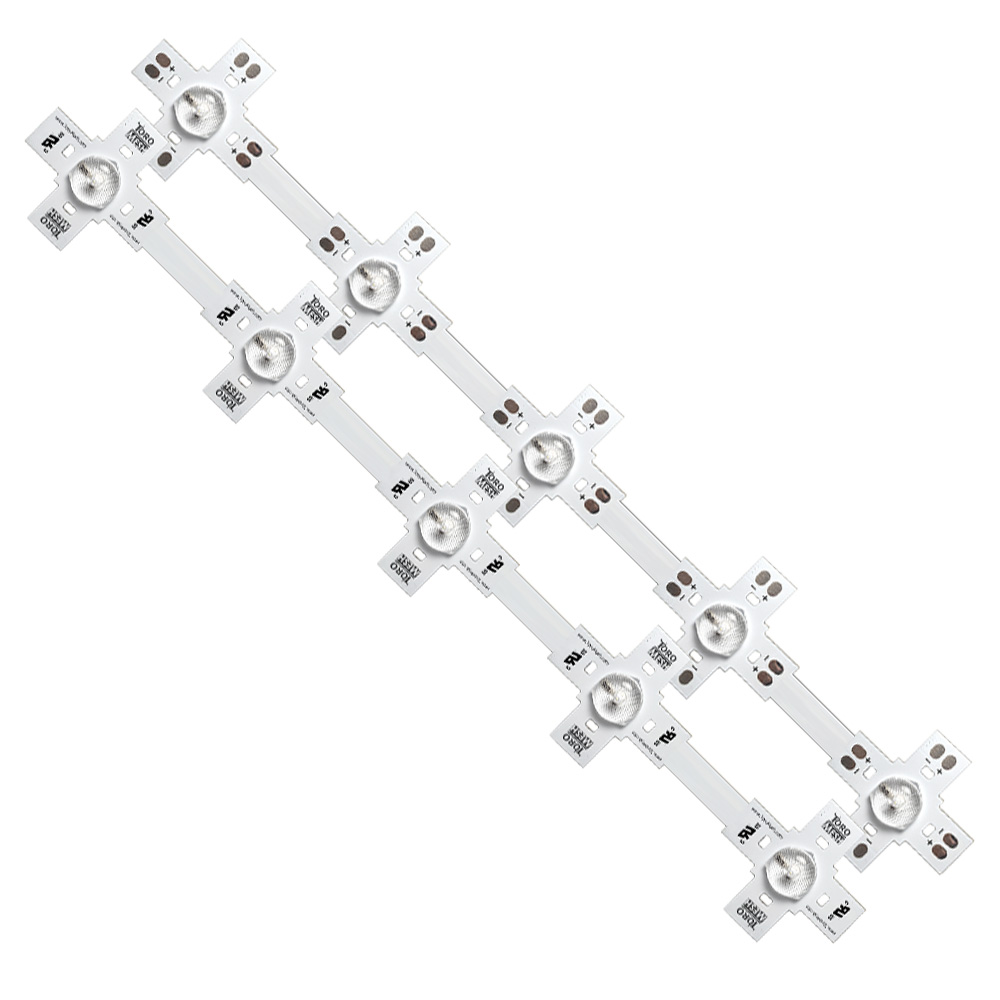

Double Sided Rigid LED Strip

TM-RS-DS-75L-5 (5 LEDs per side)
TM-RS-DS-75L-9 (9 LEDs per side)

Rigid LED strip with optical lens 170°, 65lm per LED.

Available with 5 or 9 LEDs per strip, cuttable into single modules.
ToroMesh LED Rigid Strip

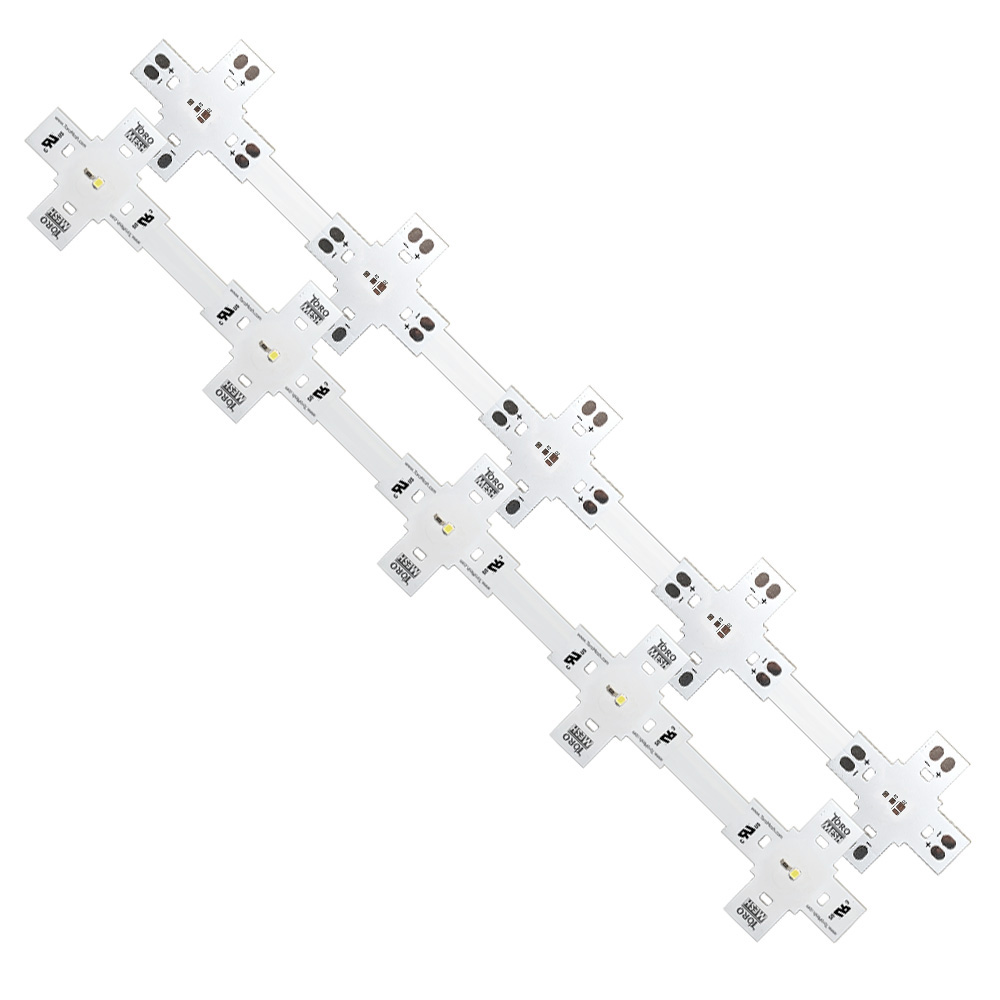

Single Sided Rigid LED Strip

TM-RS-SS-75-5 (5 LEDs per strip)
TM-RS-SS-75-9 (9 LEDs per strip)

Rigid LED strip with silicone coating, 75lm per LED.

Available with 5 or 9 LEDs per strip. Cuttable into single modules.
ToroMesh LED Rigid Strip

Double Sided Rigid LED Strip

TM-RS-DS-75-5 (5 LEDs per side)
TM-RS-DS-75-9 (9 LEDs per side)

Rigid LED strip with silicone coating, 65lm per LED.

Available with 5 or 9 LEDs per strip. Cuttable into single modules.
ToroMesh LED Rigid Strip

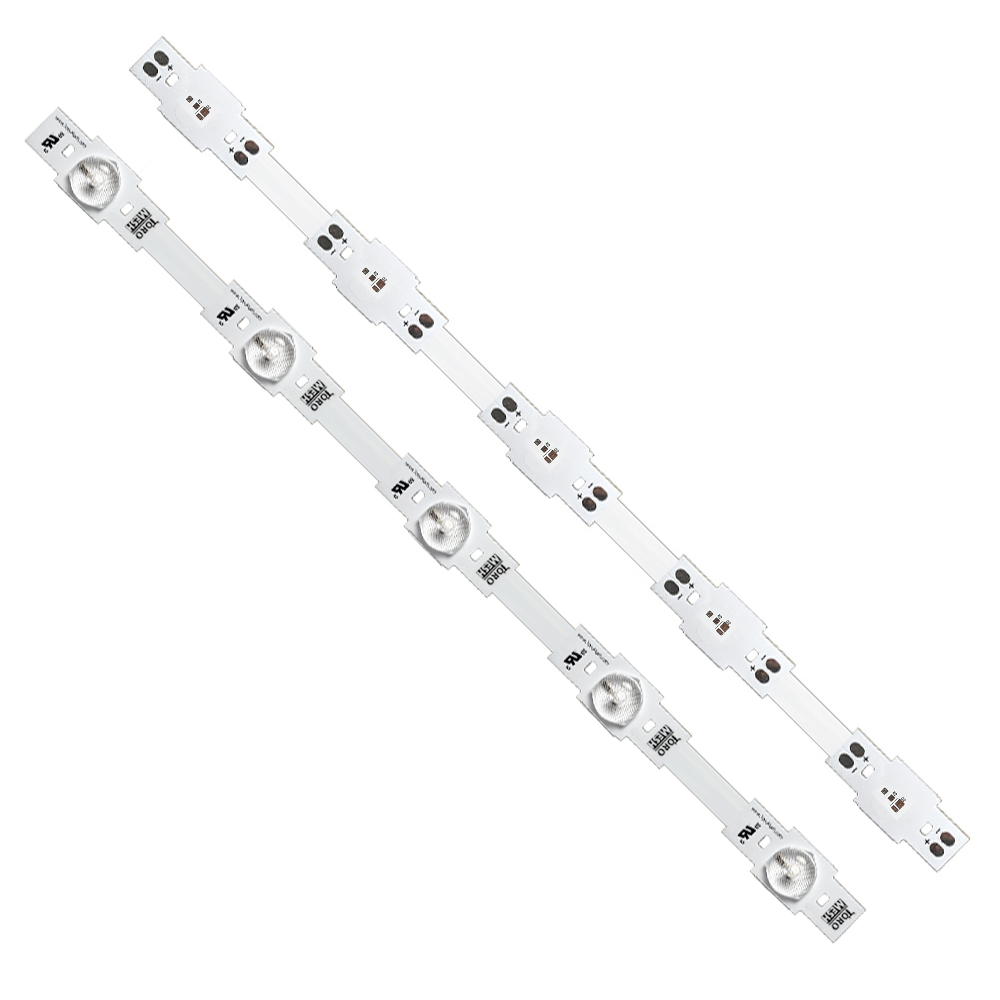

Single Sided Rigid LED Strip

TM-RSE-SS-75L-5 (5 LEDs per strip)
TM-RSE-SS-75L-9 (9 LEDs per strip)

Rigid LED strip with optical lens 170°, 80lm per LED.

Cuttable into shorter segments, down to single modules.
ToroMesh LED Rigid Strip

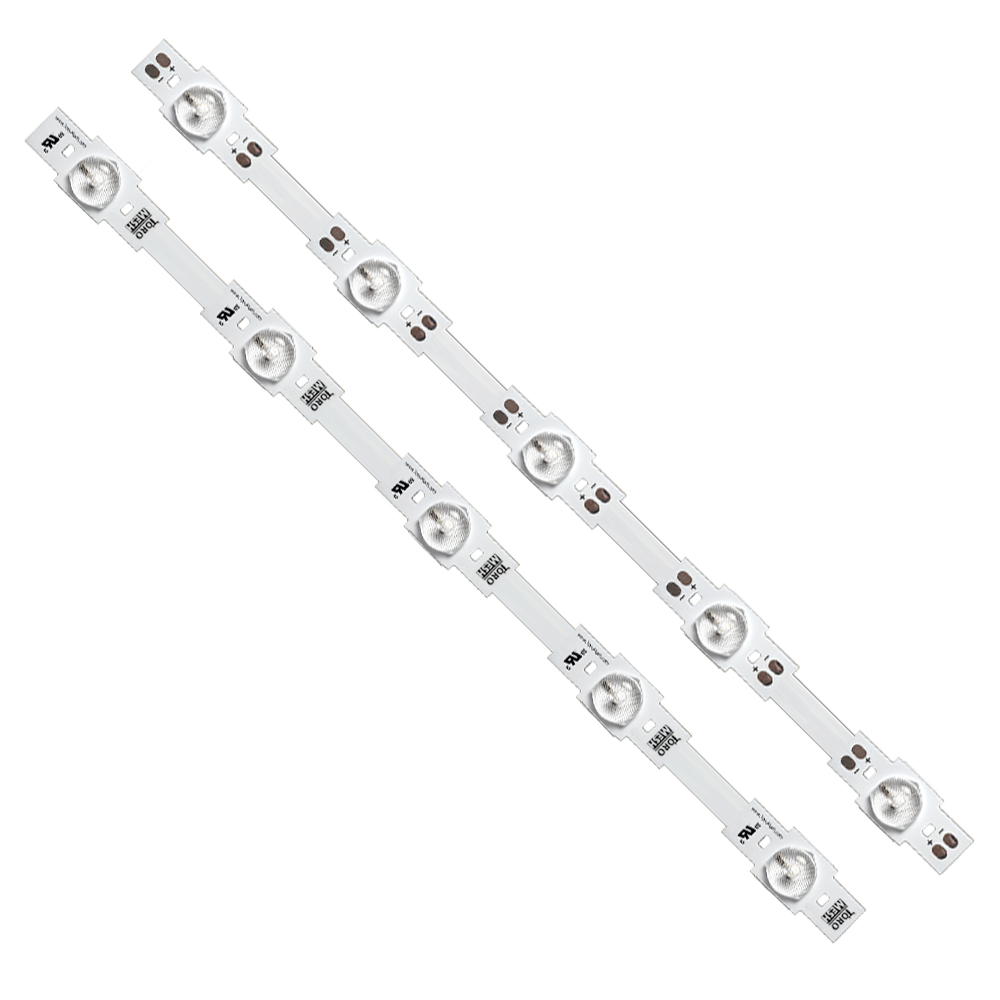

Double Sided Rigid LED Strip

TM-RSE-DS-75L-5 (5 LEDs per side)
TM-RSE-DS-75L-9 (9 LEDs per side)

Rigid LED strip with optical lens 170°, 70lm per LED.

Cuttable into shorter segments, down to single modules.
ToroMesh LED Rigid Strip

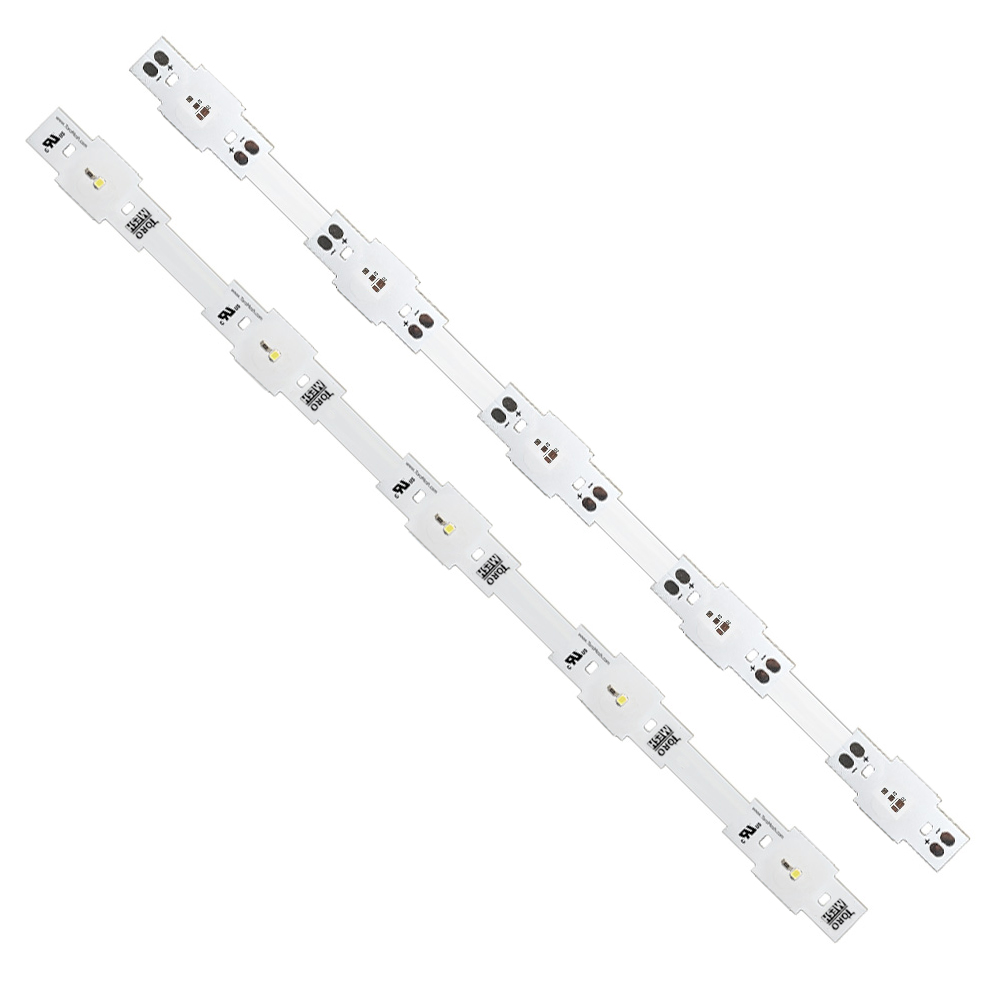

Single Sided Rigid LED Strip

TM-RSE-SS-75-5 (5 LEDs per strip)
TM-RSE-SS-75-9 (9 LEDs per strip)

Rigid LED strip with silicone coating, 80lm per LED.

Cuttable into shorter segments, down to single modules.
ToroMesh LED Rigid Strip

Double Sided Rigid LED Strip

TM-RSE-DS-75-5 (5 LEDs per side)
TM-RSE-DS-75-9 (9 LEDs per side)

Rigid LED strip with silicone coating, 70lm per LED.

Cuttable into shorter segments, down to single modules.
ToroMesh LED Rigid Strip
